The WAgratech air dryer with heat pump is a hybrid air dryer that dries process air by means of condensation and absorption. This dried air is efficiently distributed via the ABC Processor.
Installations & products
WAgratech Hybrid Air Dryer
Installations & products
The WAgratech air dryer as the central point
The process of drying seeds after harvest or treatment has become too important to be handled with a simple start button and thermostat. Too much energy and time are often wasted, and seed quality can deteriorate. This results in a significant loss of money instead of increased returns.
An other example: If the drying time is too long, increasing the process temperature is a costly and often pointless measure. It also negatively impacts seed quality, a double loss!

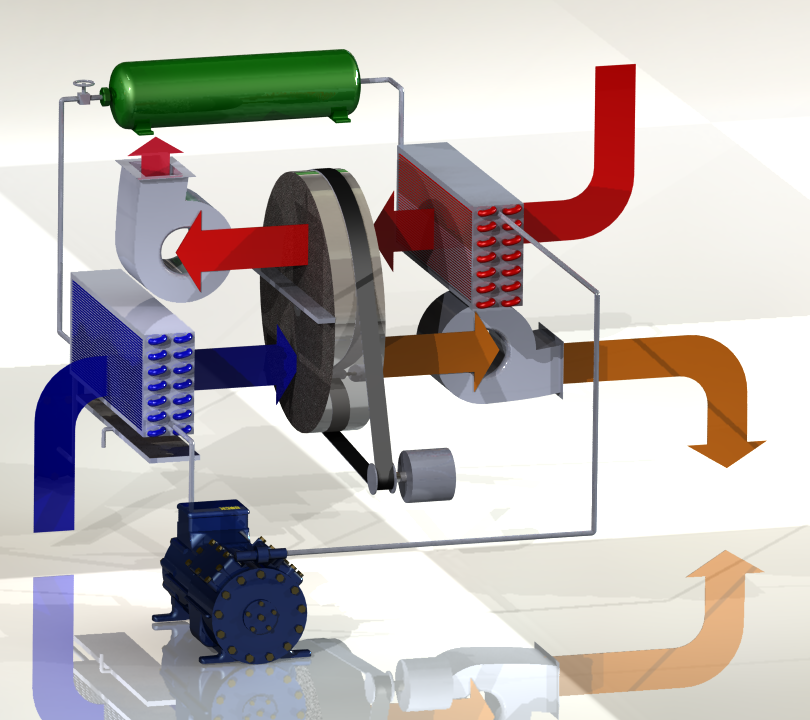

The WAgratech Air Dryer with heat pump is a hybrid air dryer that dries the process air by condensation and adsorption.
The process air is dried to a low moisture content and, if desired, be cooled down to a low temperature.
In addition, the WAgratech Air dryer has the option of generating hot water for heating the dry air in the drying installation.
Central WAgratech air dryer
Connectable to various drying systems. Drying cells, drawer dryers, boxes, and more.
Safe time and energy
Thanks to our ABC Processor, the same installation can provide different rooms with the correct and optimal air supply.
Product Informatie
WAgratech Hybride Luchtdroger
Schematic Overview
ABC-Software WAgratech Hybrid Air Dryer
1
Adsorption Rotor
2
Pre-cooling for pre-drying
3
Heating for regeneration air
4
Cool regeneration air
5
Heating process air
6
Warm water to dry the seed
7
External capacitor
8
Status of the WAgratech Hybrid Air Dryer
Auto Regeneration
The silica gel in the rotor cannot adsorb water unlimited. Nevertheless the adsorption and regeneration process is a continuing process. To make the adsorption process a continuing process the construction of the rotor is designed to adsorb water at 75 or 50% of the total surface of the wheel (level for process air). 25 or 50% (depending the T° of the regeneration air) of the rotor is used for regeneration process (drying the rotor).
Optimal drying
The air adapts during the phases of the drying process. With the Agratechniek Drying Method, we distinguish 5 phases to achieve optimal drying and save energy.
Complete control through complete information
By equipping every installation with the necessary sensors, you maintain control over the humidity and temperature of both incoming and outgoing air streams. This gives you insight into every phase of the drying process.
All information is forwarded to the ABC Controller, where all data converges.
All essential information: clearly presented based on the actual layout of the dryerCentral Air Dryer
Efficient distribution of dry air with ABC Processor
The air drying process is an expensive business; this applies not only to condensation and adsorption dryers, but also to the hybrid dryers of energetic interest (combined condensation and adsorption drying).
It is not economical to place an air dryer at every drying installation. Continuous drying does not take place at all installations, and dried air is not required constantly.
Efficient supply of dried air
Dried air where and when needed
Agratechniek has developed a principle whereby a central air dryer (1) directs the dried air to the desired location. Various drying systems (4, 5), cabinet dryers (static (6) and rotary (7)), conditioning chambers (2), drying tables (3) or packaging machines (8, 9) are connected to a central air duct (10). Thanks to the advanced ABC process, the dried air is automatically discharged to the desired location at that moment.
1
Central air dryer
2
Conditioned cells
3
Drying tables
4
Various drying systems
5
Various drying systems
6
Cabinet dryers static
7
Rotary drying
8
Packaging machines
9
Packaging machines
10
Central air duct
1
Supply of dried air
2
Outside air intake
3
Removal of humid air
4
Return of dry air from the cell (recycling)
Example
Drying/Conditioning Cell
During the seed drying process, a lot of moisture can be discharged using heated up outside air. Unfortunately the
conditions of the outside air are not always suitable to reach the desired equilibrium moisture content at the end.
Especially now that more seed companies want to receive, store and package the seed with a lower moisture content. To be able to dry the seed quickly and successfully, dried air is needed in the last phase.
Economical and modulating drying of air; the hybrid principle with a double heat pump
Overview
Use WAgratech with an open drying system.
Use of the WAgratech hybrid air dryer in an open drying system with stacked boxes.
By supplying dry air in a controlled manner per section, in combination with the driest air from inside or outside, optimal drying is made possible.
Overview
Use WAgratech for individual box drying
From the central hybrid air dryer, air is distributed by an air duct to the various drying sections.
Each section has a central shut-off valve that opens when a drying area near this section needs dried air.
At the section, the dried air enters a vertical duct. Here the air is distributed over the various drying areas.
Schematic Overview
Overview of air distribution to and from the WAgratech Air Dryer
1
100% outdoor air is used, the indoor air intake is closed.
2
9400m³/h dried air is moved from the air dryer to two drying sections.
3
At section 1, a valve is open 81% to let in dried air.
4
At drying point 1.1 the valve is opened enough to achieve the desired moisture content.
5
At box position 1.2 the remaining dried air is available.
The WAgratech air dryer can be used for any system that uses the ABC Processor
